Flex-A-Seal Mechanical Seals:      Metal Bellows


Flex-A-Seal Mechanical Seals - Metal Bellows - Style 40 - 42 - 45 Flex-A-Seal Mechanical Seals - Metal Bellows - Style 60 - 62 - 64 Flex-A-Seal Mechanical Seals - Metal Bellows - Style 66

Metal Bellows

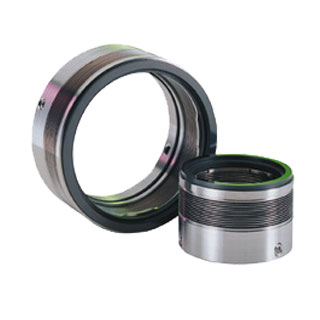

Style 40 - 42 - 45 - Welded metal bellows.

  • Dynamic O-ring is eliminated.
  • Superior performance, no hang up or shaft fretting.
  • Hydraulically balanced seal. Allows seal to handle more pressure without heat buildup.
  • Pressure to 300 PSI.
  • Self cleaning. Centrifugal force throws solids away from seal.
  • Fits small cross section stuffing boxes.
  • Available in metric and DIN sizes.
  • Bellows allows 360 degrees even face loading.
  • Varied choice of face, elastomer, and metal materials.
  • Single piece construction.
  • Operating Conditions: Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 4500 FPM (22 m/sec).

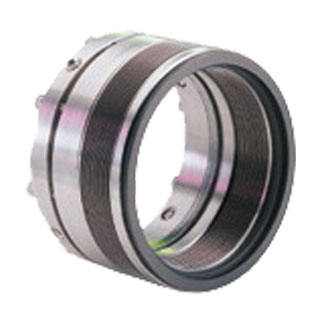

Style 60 - 62 - 64 - High temperature welded bellows design.

  • Static grafoil packings.
  • Temperature sensitive O-rings are eliminated.
  • High temperature metallurgy. All parts are designed to handle elevated temperatures without any adverse effects.
  • Hydraulically balanced seal. Allows seal to handle more pressure without heat buildup.
  • Self Cleaning. Centrifugal force throws solids away from seal.
  • Stationary (Style 64) and drive lugs (Style 62) options.
  • Cartridge design available.
  • 360 degree even face loading.
  • Operating Conditions: Max. Temp 800F (425C), Max. Pressure 300 PSI (20 bar), Max. Speed 4500 FPM (22 m/sec).

Style 66 - High temperature cartridge.

  • Easy cartridge installation.
  • High temperature static grafoil packing throughout.
  • Individual connection sizes to assure proper piping.
  • Inconel bellows options available.
  • Rotating designs assure self cleaning.
  • Stationary and drive lug designs available as required.
  • Easily upgradeable to API design specifications.
  • Operating Conditions: Max. Temp 800F (425C), Max. Pressure 300 PSI (20 bar), Max. Speed 4500 FPM (22 m/sec).
