Single Cartridge Seals

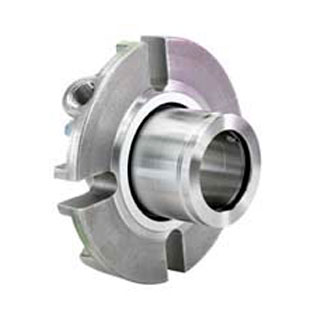

Style RC - This is our most cost effective cartridge design, but the list of features is equal to that of a mid-range seal. The RC is hydraulically balanced and has a monolithic face with homogenous material.

  • A unique shrouded rotary virtually eliminates any seal clogging in the stuffing box.
  • Drive mechanisms, springs, and the sleeve are isolated from the product, minimizing corrosion and stress-related failure. The seal faces are positioned in the gland for maximum protection.
  • A dynamic elastomer moves on a non-metallic surface and eliminates fretting.
  • The flush position maximizes face cooling.
  • It fits all standard ANSI pumps and offers easy cartridge installation.
  • Operating Conditions - Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 4500 FPM (22 m/sec).

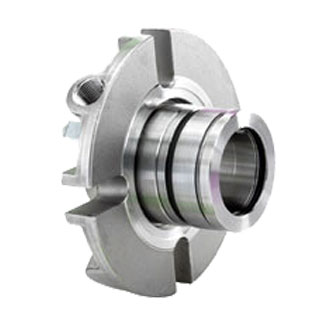

Style SMS - Flex-A-Seal's most cost effective cartridge design, with stationary single spring cartridges.

  • Monolithic face w/ homogenous material.
  • Drive mechanisms out of product.
  • Springs are out of product, minimizing corrosion and stress related failure.
  • Unique shrouded rotary for maximum face protection and reliable startup.
  • Uniform 360 degree transfer of torque to rotating face.
  • Seal faces positioned in gland for maximum protection.
  • Dynamic elastomer moves on nonmetallic surface eliminating fretting.
  • Faces designed for optimum heat dissipation.
  • Sleeve is isolated from product.
  • Hydraulically balanced.
  • Easy cartridge installation.
  • Flush position maximizes face cooling.
  • Fits all standard and large bore ANSI pumps.
  • Also available: SMS-3 C, V, & D - Providing all the benefits of the SMS-1 design, plus vent and drain gland with throttle bushing. Pipe connections are made to different sizes to assure that correct piping plans are employed.
  • Operating Conditions - Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 6000 FPM (30 m/sec).

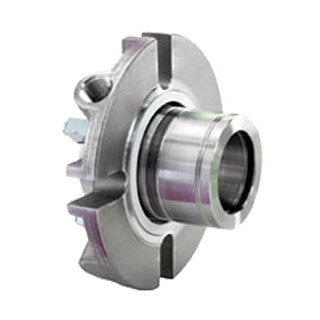

Style RB - An integrated cartridge system design consisting of a single welded metal bellows cartridge.

  • Rotating welded metal bellows - self cleaning.
  • Simple installation requires no dimensions to be taken. Slide on, bolt to box face, tighten set screws, remove spacers.
  • No moving elastomers. No fretting. No hang-up.
  • Minimal number of parts. Simple design means less pieces to cause problems.
  • Fits all ANSI pump designs.
  • Metric and DIN sizes readily available.
  • Fits 5/16" cross section stuffing boxes.
  • Easily modified to fit oversized stuffing boxes.
  • Quick, inexpensive repairs.
  • Also available: RB-3 C, V, & D - Providing all the benefits of the RB-1 design, plus vent and drain gland with throttle bushing. Pipe connections are made to different sizes to assure that correct piping plans are employed.
  • Operating Conditions - Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 4500 FPM (22 m/sec).

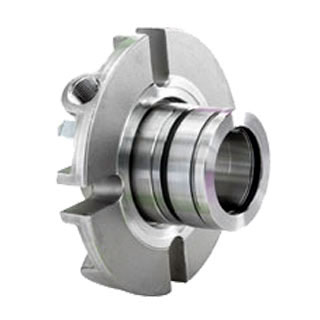

Style SS1 - Stationary pusher design, with stationary single spring cartridges.

  • Hydraulically balanced, heavy-duty, and rugged design.
  • No little springs to clog or fatigue, simply one beefy single spring located out of the product.
  • Easy cartridge installation.
  • Flush position maximizes face cooling.
  • Shrouded rotary seal ring for maximum face protection and reliable start-up.
  • Uniform 360 transfer of torque to primary rotating face.
  • No pins to break or hang up.
  • Fits all standard ANSI pumps.
  • Easily upgradeable faces, metallurgies, and elastomers.
  • Faces designed for optimum heat dissipation.
  • Also Available: SS-3 C, V, & D - Providing all the benefits of the SS-1 design, plus vent and drain gland with throttle bushing. Pipe connections are made to different sizes to assure that correct piping plans are employed.
  • Operating Conditions - Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 6000 FPM (30 m/sec).

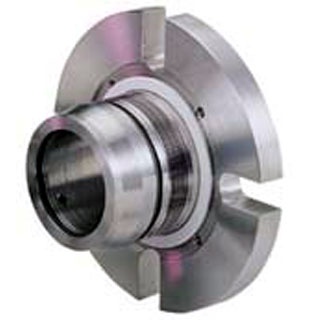

PHB / Style 33 - Stationary welded bellows, engineered for the most demanding corrosive applications.

  • The only cartridge seal in industry with only one o-ring, cost savings are substantial when perfluoroelastomers are required.
  • Faces positioned near the lantern ring connection for enhanced cooling and flushing.
  • 316 SS sleeve and gland are out of the product and dont need to be constructed of expensive metals in corrosive situations.
  • Rotary seal ring is shrouded for protection.
  • Minimizes nearest obstruction problems.
  • Hydraulically balanced design.
  • No dynamic O-rings.
  • Easy cartridge installation.
  • Even face loading.
  • Operating Conditions: Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 6000 FPM (22 m/sec).


Flex-A-Seal Mechanical Seals - Single Cartridge Seals - PHB / Style 35 Flex-A-Seal Mechanical Seals - Single Cartridge Seals - Style SB Flex-A-Seal Mechanical Seals - Single Cartridge Seals - Style 30 Flex-A-Seal Mechanical Seals - Single Cartridge Seals - Style 57 Flex-A-Seal Mechanical Seals - Single Cartridge Seals - Style 66

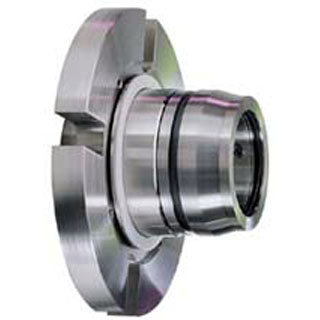

PHB / Style 35 - Stationary multiple spring cartrdige, engineered for the most demanding corrosive applications.

  • Stationary multiple spring design.
  • 316 SS sleeve and gland are out of product and do not need to be constructed of expensive metals in corrosive situations.
  • Seal faces positioned near lantern ring connection for enhanced cooling and flushing.
  • Rotary seal ring is shrouded for protection.
  • Minimizes nearest obstruction problems.
  • Heavy duty anti-rotation lugs.
  • Hydraulically balanced design.
  • Only 2 O-rings.
  • Easy cartridge installation.
  • Springs are out of the product.
  • Operating Conditions: Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 6000 FPM (22 m/sec).

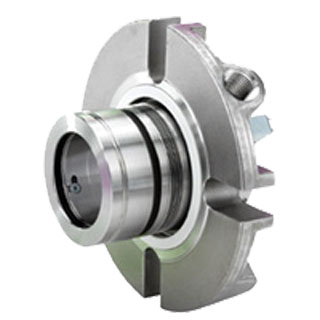

Style SB - Stationary welded bellows cartridge.

  • Easy cartridge installation.
  • Stationary bellows design, maximizing face alignment.
  • Hydraulically balanced design.
  • Even face loading.
  • No dynamic elastomers.
  • Only 2 static O-rings.
  • Flush position maximizes face cooling.
  • Shrouded rotary seal ring for maximum face protection and reliable start-up.
  • Uniform 360 transfer of torque to the primary rotating face.
  • No pins to break or hang up.
  • Fits all standard ANSI pumps.
  • Faces, metallurgies, and elastomers are easily upgradeable.
  • Faces designed for optimum heat dissipation.
  • Also available: SB-3 C,V, & D - All the benefits of the SB-1 design plus vent and drain gland with throttle bushing. Pipe connections are made to different sizes to assure that correct piping plans are employed.
  • Operating Conditions: Max. Temp 400F (204C), Max. Pressure 300 PSI (20 bar), Max. Speed 6000 FPM (30 m/sec).

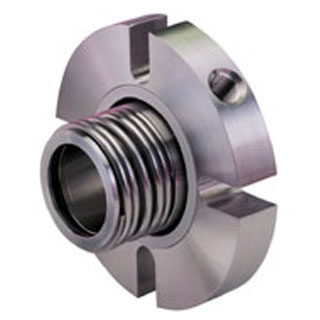

Style 30 - Low cost single cartridge, single spring, elastomer bellows design.

  • Heavy duty / non clogging.
  • Minimal number of parts.
  • Simple installation.
  • No moving elastomers.
  • Fits all ANSI pumps.
  • Fits 5/16 cross section stuffing box.
  • Easily modified to fit oversized stuffing boxes.
  • Operating Conditions: Max. Temp 400F (204C), Max. Pressure 150 PSI (10 bar), Max. Speed 4500 FPM (22 m/sec).

Style 57 - Low cost single cartridge, single spring.

  • Heavy duty / non clogging.
  • Minimal number of parts.
  • Simple installation.
  • Fits all ANSI pumps.
  • Fits 5/16 cross section stuffing box.
  • Easily modified to fit oversized stuffing boxes.
  • Operating Conditions: Max. Temp 400F (204C), Max. Pressure 150 PSI (10 bar), Max. Speed 4500 FPM (22 m/sec).

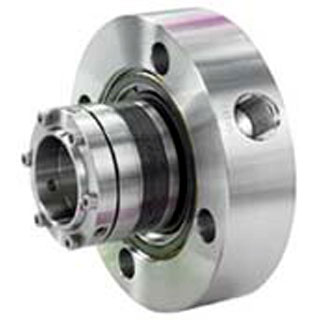

Style 66 - High temperature cartridge.

  • Easy cartridge installation.
  • High temperature static grafoil packing throughout.
  • Individual connection sizes to assure proper piping.
  • Inconel bellows options available.
  • Rotating designs assure self cleaning.
  • Stationary and drive lug designs available as required.
  • Easily upgradeable to API design specifications.
  • Operating Conditions: Max. Temp 800F (425C), Max. Pressure 300 PSI (20 bar), Max. Speed 4500 FPM (22 m/sec).
