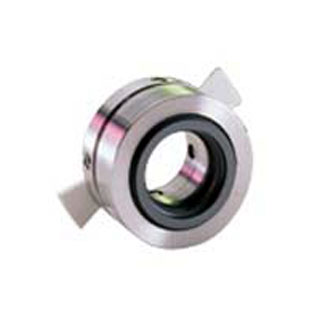

Styles 23 - External mechanical seal for corrosive elements.
- Pre-assembled at the factory. No dimensions to take. Just slide on the shaft, tighten collar and remove setting clips.
- Hydraulically balanced seal. Factory engineered to handle internal pressure up to 150 psi.
- Readily accessible, seal faces visible. Seal is mounted outside the stuffing box and can be modified without pulling the
pump down.
- High strength rotating face. Carbon is shrouded in metal for extra compression strength, thus minimizing possibility of breakage.
- Adaptable to Teflon or plastic sleeves. Optional split metal collar under set screws allows installation with no damage to
softer materials.
- Operating Conditions: Max. temp 250ºF (121ºC), Max. Pressure 150 PSI (10 bar), Max. Speed 4500 FPM (22 m/sec).
 "Flex-A-Seal Mechanical Seals - Component Seals - Style 23")
