Flex-A-Seal Mechanical Seals:      Split Cartridge Seals


Flex-A-Seal Mechanical Seals - Split Cartridge Seals - Style 85 Flex-A-Seal Mechanical Seals - Split Cartridge Seals - Style 85

Split Cartridge Seals

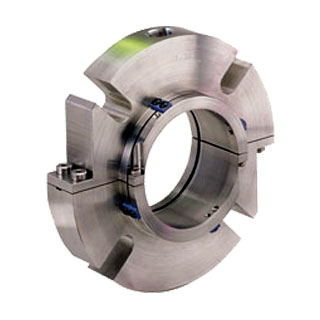

Style 85 - Fully split, patented cartridge seal.

  • Fully split cartridge, no pump disassembly, simply attach two halves over the shaft and mount like any other cartridge seal.
  • The only split seal that can be fully pressure tested at the factory before shipping.
  • Can convert a packed pump to a sealed pump easily.
  • Cartridge style setting clips allow for true axial and radial alignment without using shims. This also allows for impeller adjustment without pump disassembly.
  • Stationary design to enhance mis-alignment capabilities.
  • Positive set screw drive, no clamped rubber parts as is common to other split seal designs.
  • Operating Conditions - Size 1 3/4 - 3 (45mm-75mm) - Max. Temp 350F (175C), Max. Speed 3600 RPM, Max. Pressure 250 PSI (17 bar); Size 3 1/8 - 3 3/4 (80mm-95mm) - Max. Temp 350F (175C), Max. Speed 1800 RPM, Max. Pressure 200 PSI (14 bar); Size 3 7/8 - 4 3/4 (100mm-120mm) - Max. Temp 350F (175C), Max. Speed 800 RPM, Max. Pressure 150 PSI (10 bar); Size 5 (125mm) And Above - Max. Temp 350F (175C), Max. Speed 875 RPM, Max. Pressure 100 PSI (7 bar).
